PowMr 60A MPPT Solar Charge Controller Work for 12V 24V 36V 48V Lithium Lead Acid Battery With LCD Display Max PV 160VDC Input

€46,72 EUR

~~€46,72 EUR~~ €46,72 EUR

Sale Ausverkauft

Inkl. Steuern.

SPECIFICATIONS

Application: Charger Controller,Water Heater Controller,Lighting Controller,Solar System Controller,Solar Working Station

Battery Type: Vented/ Sealed / Gel / NiCd /Lead Acid/ Lithium Battery, Etc

Battery Voltage: 12V 24V 36V 48V Auto

Brand Name: PowMr

Certification: CE

Charging mode: MPPT Maximum Power Point Tracking Automatically

Cooling way: Forced Air Cooling

Dispaly: Backlight LCD Controller

Feature: No-VAT, No-TAX

For home: Easy To Be Mounted With Overcharge protection, Input PV polarity reverse protection, Output Limited Current Protection

Is Smart Device: Yes

Item: PowMr MPPT Solar Charge Controller 60A 50A 40A 30A

Local Shipping: 3-7 Days Delivery

Maximum Current: MPPT 60A

Model Number: HHJ-60A

Origin: Mainland China

Original Product: Stock in Gemany warehouse

PV utilization: ≥99% For 100% MPPT Technology

Product: MPPT 60A Solar Charge Controller

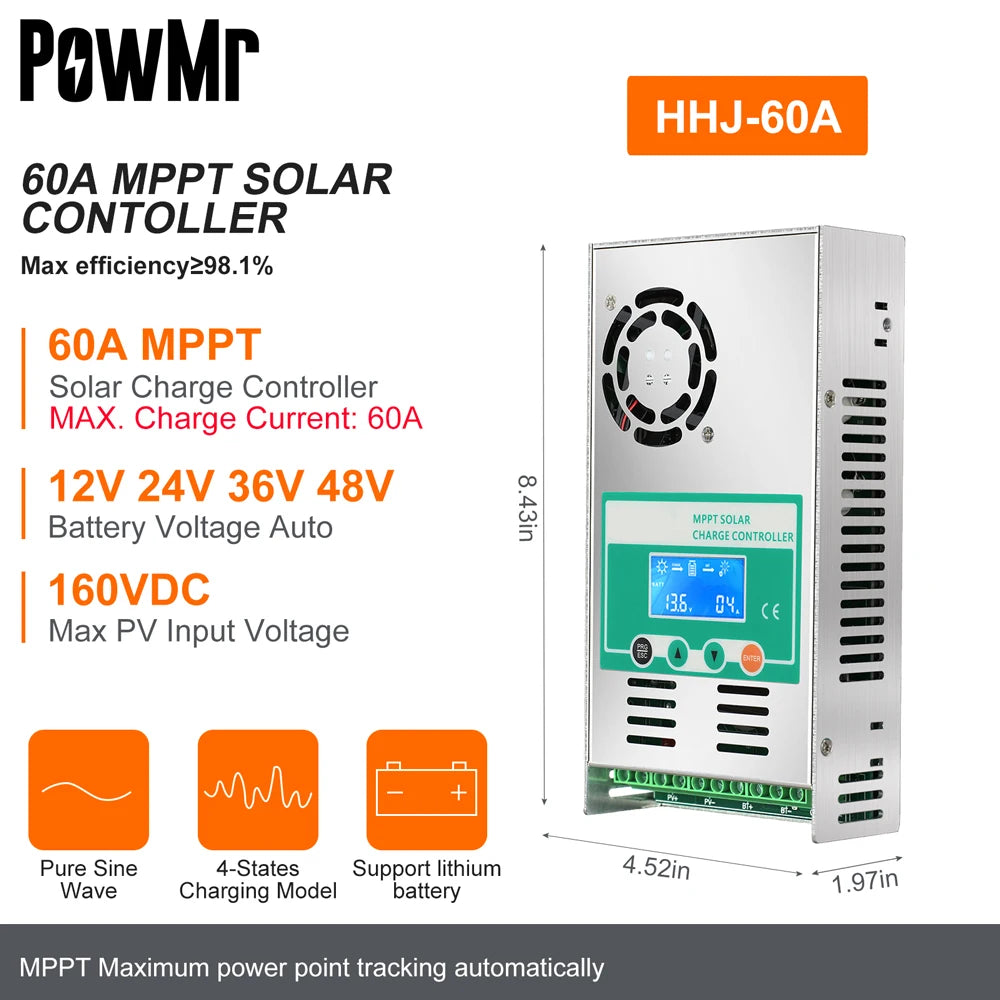

Size: 214x115x50 mm

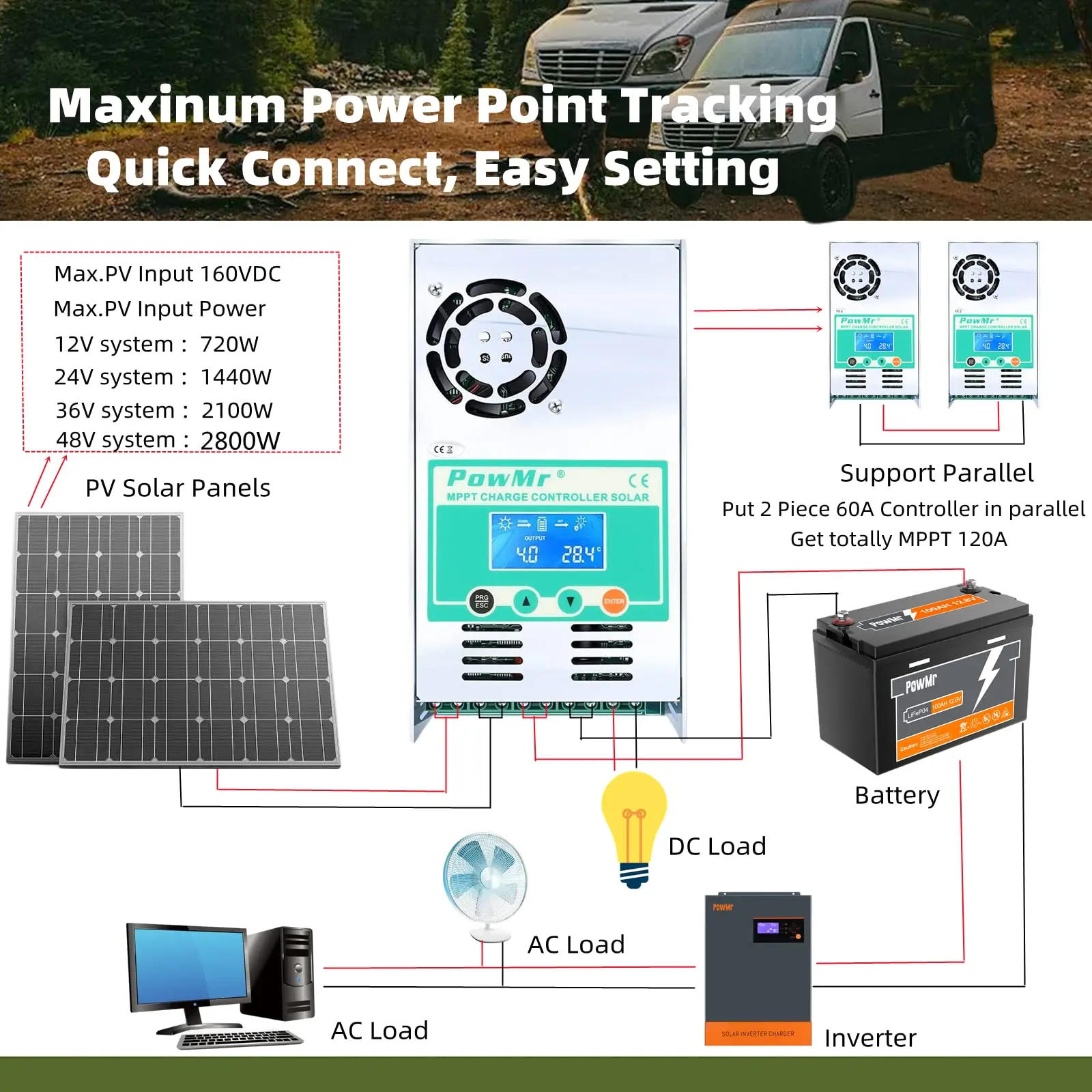

The maximum PV input power: 12V System (720W) 24V System (1440W) 36V system (2100W) 48V System (2800W)

is_customized: Yes

PowMr 60A MPPT Solar Charge Controller Work for 12V 24V 36V 48V Lithium Lead Acid Battery With LCD Display Max PV 160VDC Input

Overview:

This is a powerful and high-quality solar charger. You can charge various types of batteries and automatically identify the battery voltage. Simple operation, suitable for individuals, families, agriculture and animal husbandry.MPPT 60A This machine uses MPPT point tracking technology, MPPT series solar charge controller is based on an advanced maximum power point tracking(MPPT) technology developed,dedicated to the soalr system,the charge controller conversion efficiency up to 97%.

Featrue:

* MPPT 60A solar charge controller.

* 100% MPPT technology.

* Built-in DSP controller with high performance.

* Automatic switch for 12V/24V/36V/48Vbattery bank.

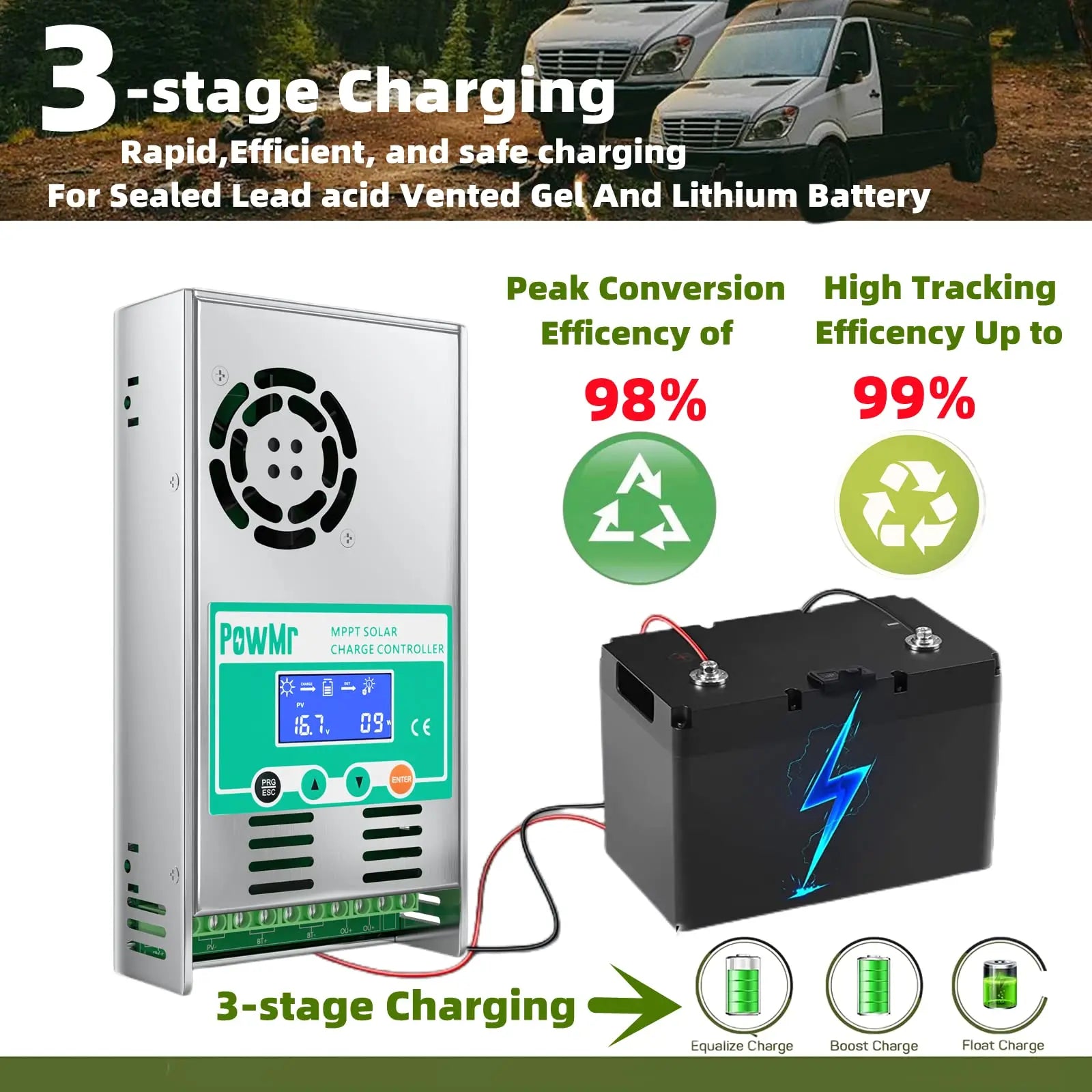

* 3-stage charging optimizes battery performance.

* Overcharge protection, Input PV polarity reverse protection, Output limited current protection, ver-temperature protection.

* Troubleshooting promotion function.

* Suitable for battery types such as sealed lead acid, vented gel and lithium battery, etc.

* Easy to be mounted.

Notes:The output terminal is for lamp only( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.

Specification:

Model	60A
Charging mode	MPPT Maximum power point tracking automatically
Charging	4-stage：constant current(MPPT), constant voltage(Absorption Voltage), floating charge, bulk charge
System type	DC12V/24V/36V/48V Recognition automatically
System voltage automatic	12V system (DC9V-DC15V) /24V system (DC18V-DC29V) /36V system (DC30V-DC39V) 48V system (DC40V~DC60V)
recognition
Soft start time	≤1S
Dynamic response and recovery time	100us
Max efficiency	≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency)
PV utilization	≥99%
Input specification
Voc from PV( Make sure the Voc of PV meeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. )	12V system (DC20V~DC80V) 24V system (DC37V~DC105V)
	36V system (DC50V~DC160V) 48V system (DC72V~DC160V)

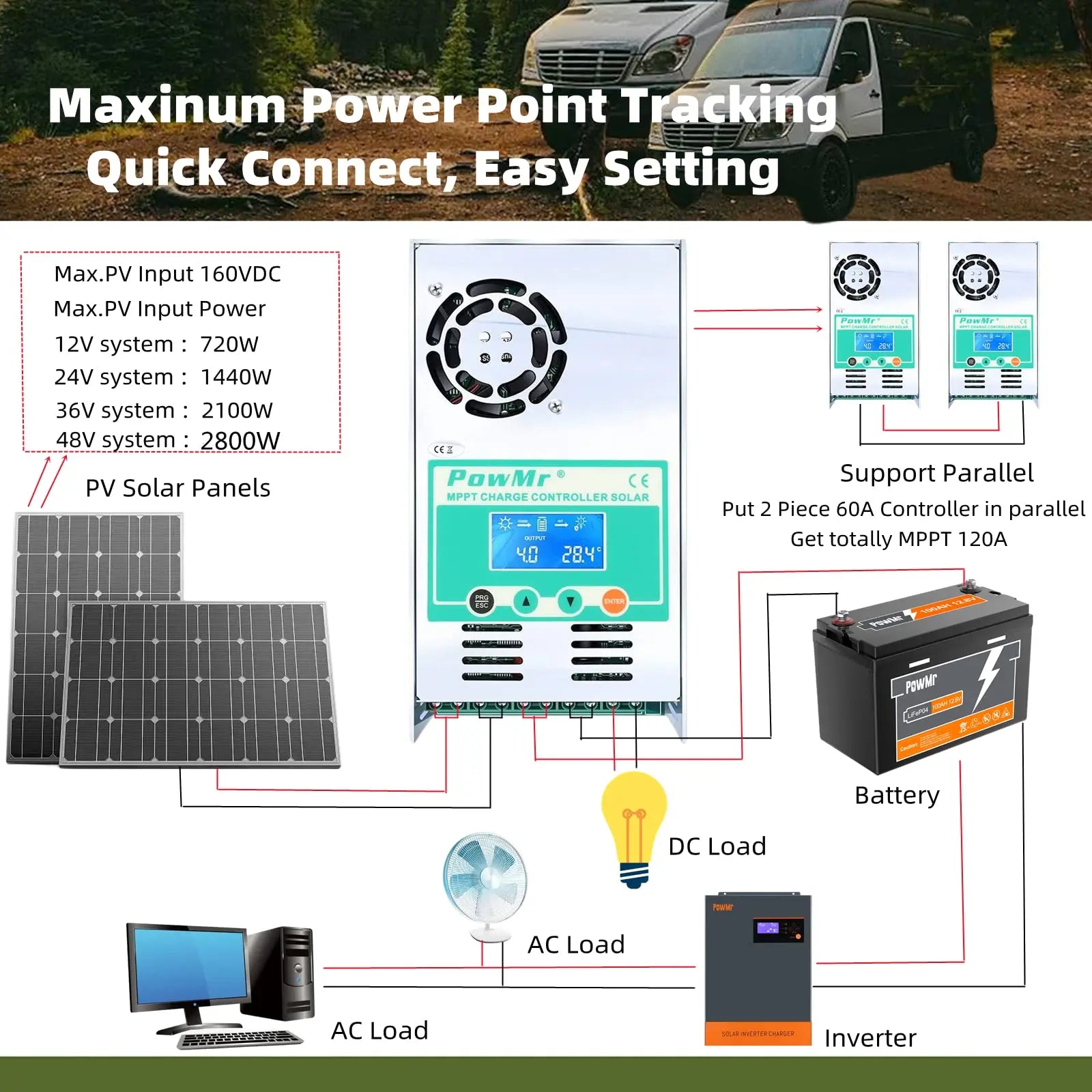

maximum PV input voltage (Voc)	160VDC
The maximum PV input power	12V system (720W)
(The total power rated of PV can’t be over this watt that will break the controller.)	24V system (1440W)
	36V system (2100W)
	48V system (2800W)
Output specification
Selectable battery type(default is Sealed)	Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)
Absorption Charging Voltage	Refer to Batteries charging reference
Floating Charging Voltage	Refer to Batteries charging reference
Overcharging protection voltage	12V system (15V) 24V system (30V) 36V system (45V) 48V system (60V)
Rated output current	60A
Temperature Coefficient	±0.02%/ centi-degree
Automatic temperature compensation	14.2V-（Max temperature-25 centi-degree）*0.3
Output voltage ripple-peak	100mV
Output voltage accuracy	≤±1%
Indicating

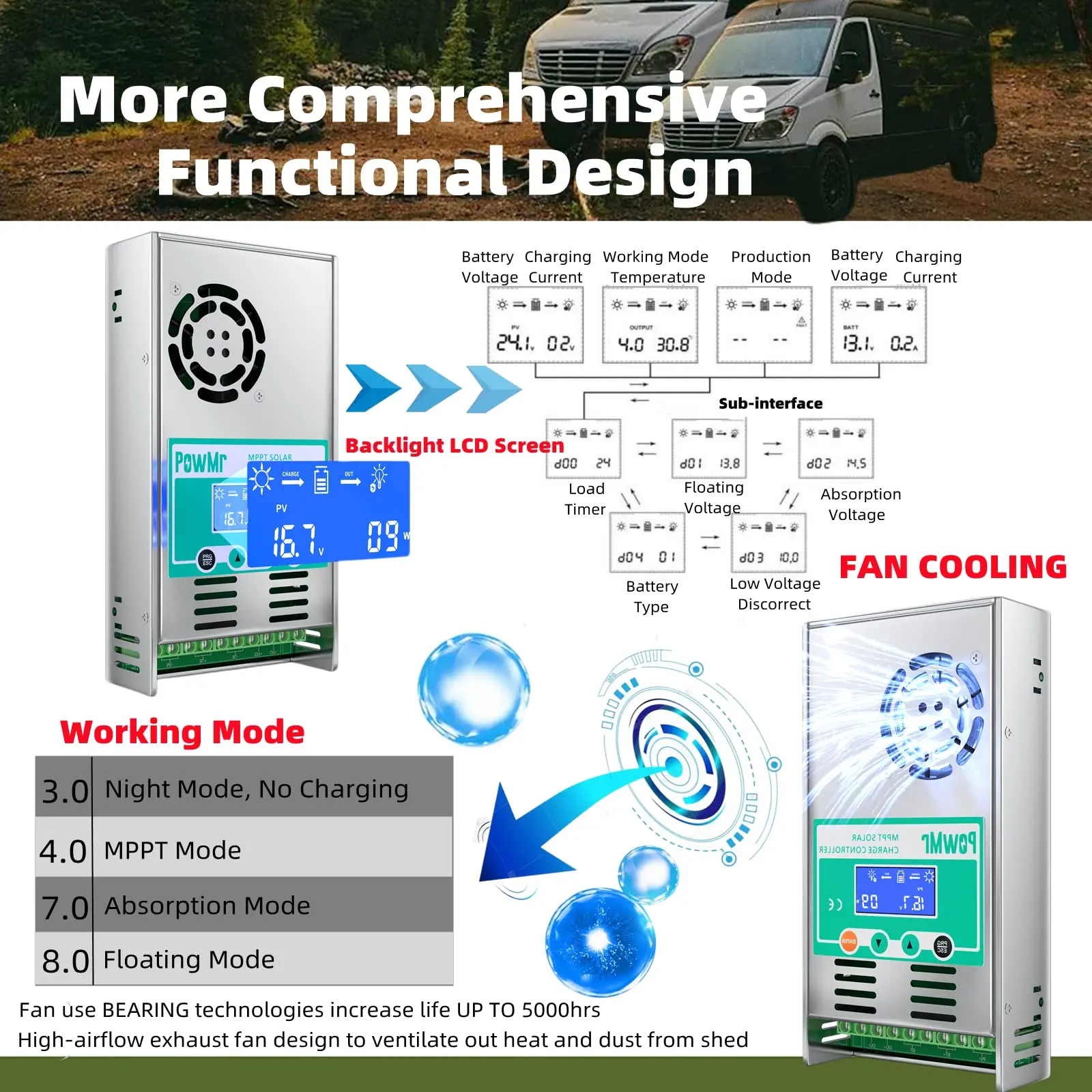

LCD display	See LCD display instruction
LED display	CPU working indicator

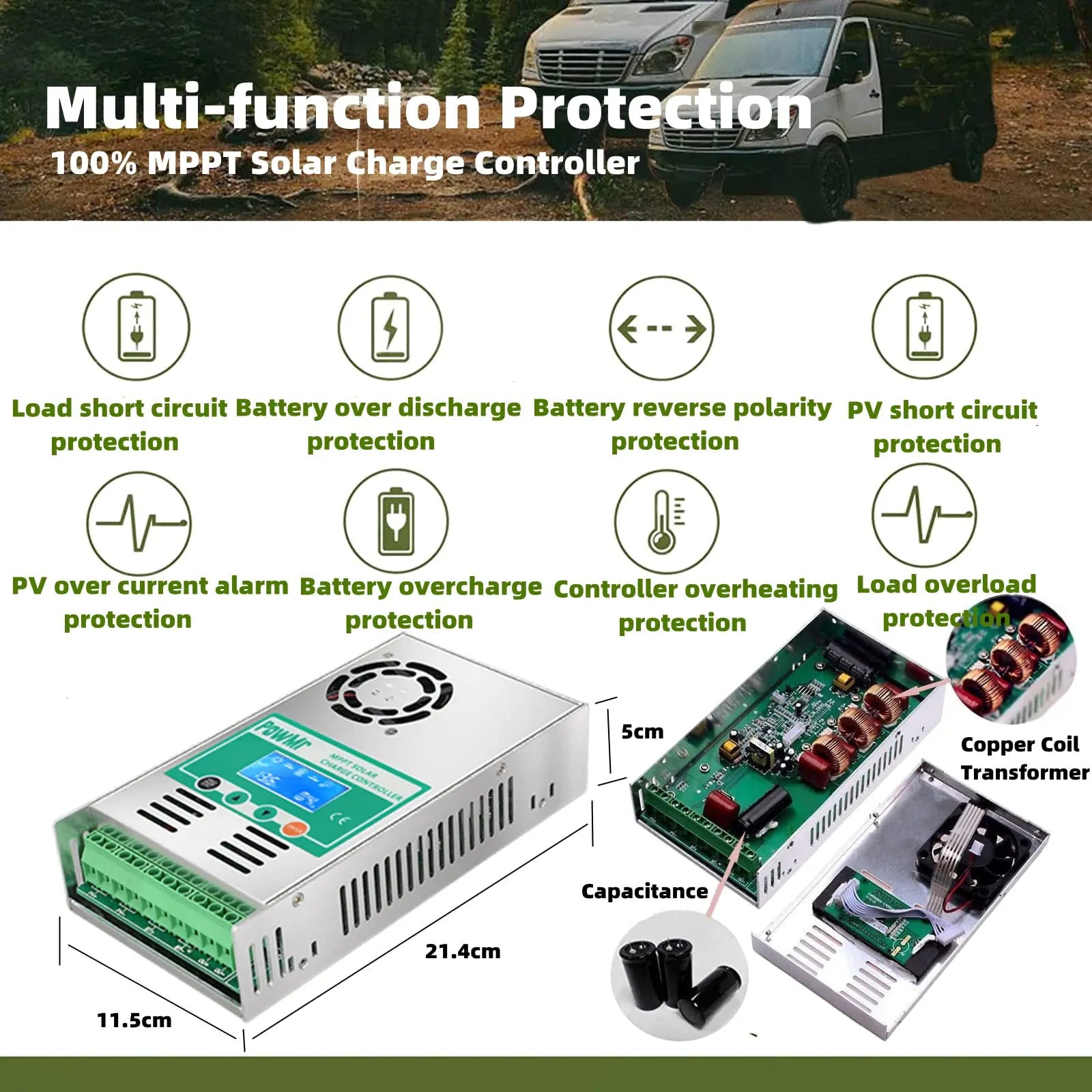

Protection function
Output over-voltage protection	See output specification
Input Anti-intrusion protection	yes
Temperature Protection	75 centi-degree
Temperature increased protection	Output power will reduce when it’s more 70

Product Overview:
