SPECIFICATIONS

Applicable Water Temperature: -5~40 ℃/23~104℉

Brand Name: NoEnName_Null

Certification: None

Delivery Volume: 35m³/1236.01ft³/h

Displacement: 212cc

Engine Type: Single Cylinder, 4-stroke, Air-cooled

Fuel: Gasoline

Fuel Consumption: 365ml/0.096Gal/KW/H

Fuel Type: 90# And Above Gasoline

Hign-concerned Chemical: None

Material: Aluminum Alloy, Carbon Steel, Cast Iron, Titanium Alloy Stainless Steel

Net Weight: 21.38kg/47.13lbs

Oil Capacity: 0.6 L/0.16Gal

Origin: CHINA

Power (W): Gasoline

Structure: Water Transfer Pump

Total Head: 30m/98.43ft

Usage: Water

Description

If you're looking for a highly efficient water pump, then please take a look at our gasoline engine water pump, which is designed for farm irrigation, fire rescue, city drainage, and more. With its high head and large water flow, it can easily cope with even large irrigation areas and enhance your agricultural productivity. In addition, you can start the machine by quickly pulling the rope, bringing you an easy and comfortable user experience.

Application

This product is widely used for water well intake, farmland irrigation, garden irrigation, greenhouse planting, field water, fire water, ground cleaning, drainage, pool water exchange, etc.

How to Use

1. Place the machine flat and fill it with engine oil. Just enough for oil to drip out, too much or too little engine oil will affect the operation.

2. Add 90 # or above gasoline.

3. Fill the pump head with water until water overflows from the outlet.

4. Turn the red shutdown switch upwards to the "ON" position.

5. Connect the inlet pipe.

6. Connect the water outlet.

7. Adjust the throttle switch to the left, adjust the air vent to the left, and adjust the oil circuit switch to the right.

8. First, pull out a small section of the rope and then quickly pull the rope to start the machine.

Specification

Material: Aluminum Alloy, Carbon Steel, Cast Iron, Titanium Alloy Stainless Steel

Color: Red, Black

Process: Die-casting, Stamping

Style: Modern

Mounting Type: Free Standing

Fuel Type: 90# And Above Gasoline

Ignition Method: Contactless Transistor Ignition

Startup Method: Manual Startup

Engine Type: Single Cylinder, 4-stroke, Air-cooled

Power: 7.5HP

Speed: 3600rpm

Connection Dia.: 80mm/3in

Total Head: 30m/98.43ft

Fuel Consumption: 365ml/0.096Gal/KW/H

Delivery Volume: 35m³/1236.01ft³/h

Suction Height: 8m/26.25ft

Fuel Tank Capacity: 3.6L/0.95Gal

Oil Capacity: 0.6 L/0.16Gal

Displacement: 212cc

Running Time: 5H

Applicable Water Temperature: -5~40 ℃/23~104℉

Noise Level: 66dB

Water Pipe Length: 7.5m/24.61ft

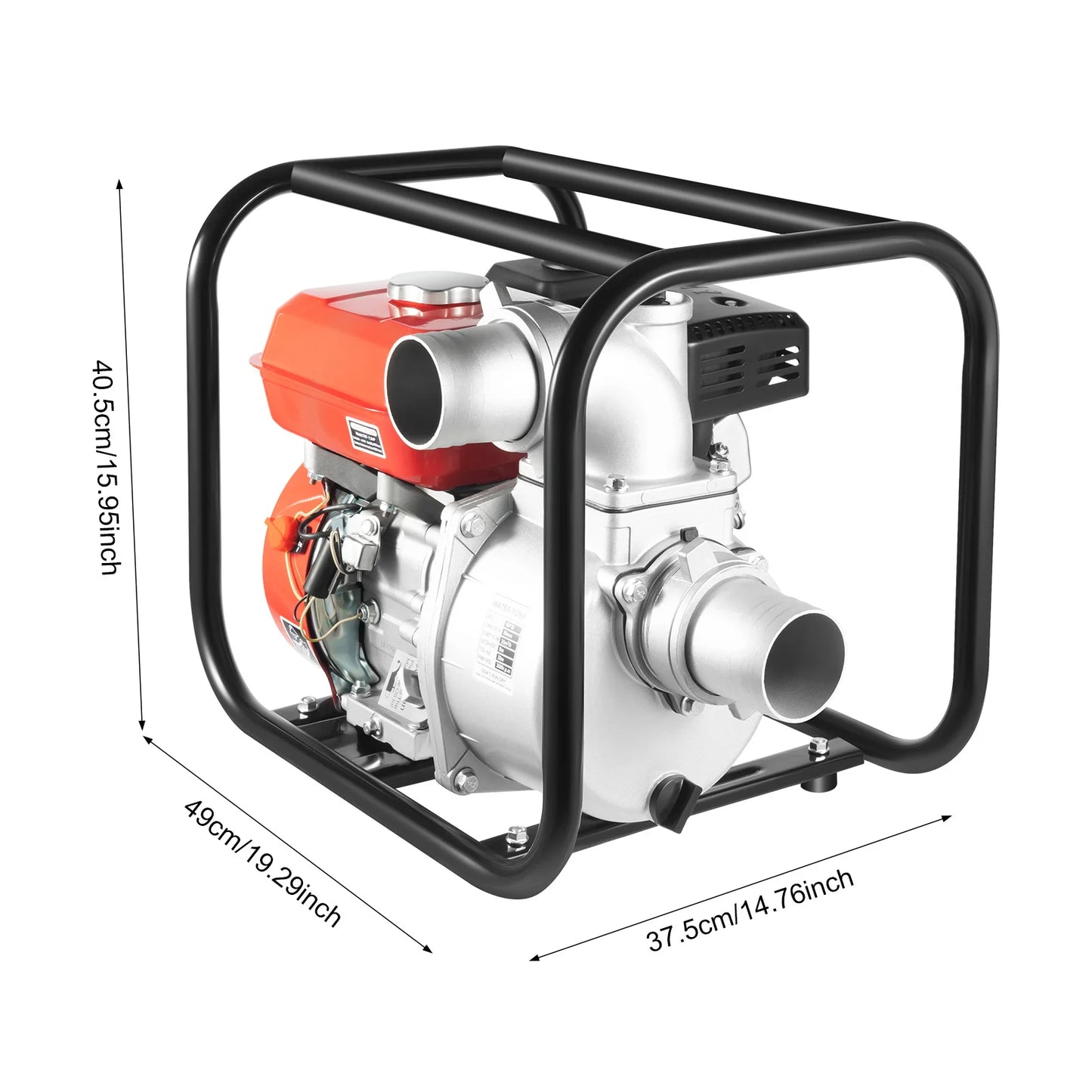

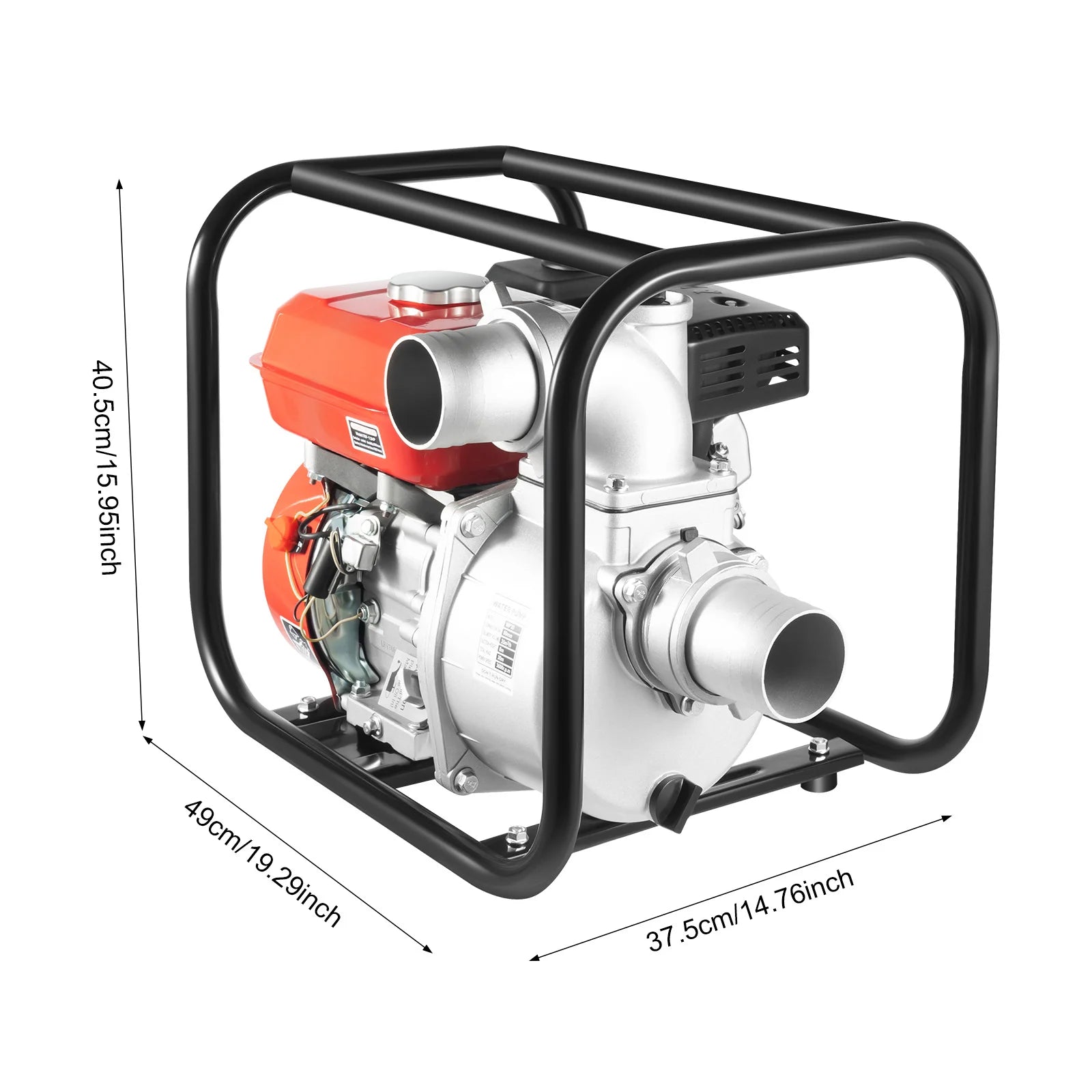

Product Size: 49*37.5*40.5cm/19.29*14.76*15.95in

Package Size: 50.5*38.5*43cm/19.88*15.16*16.93in

Gross Weight: 22.5kg/49.6lbs

Net Weight: 21.38kg/47.13lbs

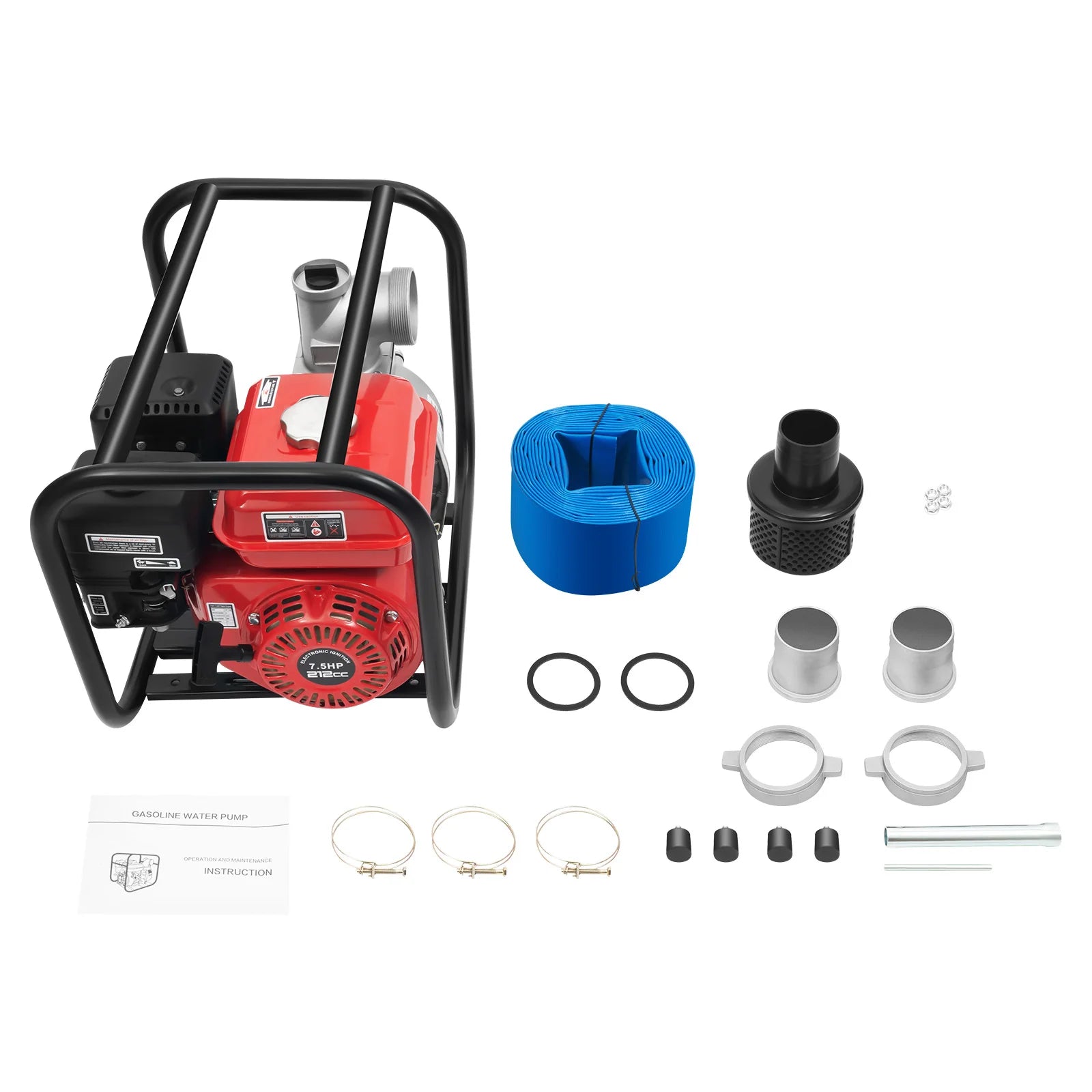

Package Included

1* Gasoline Engine Water Pump

1* English Manual

1* Water Pipe

Other Accessories for Assembly

Key Features

Made to Last: High-class aluminum alloy, carbon steel, cast iron, and titanium alloy stainless steel with exquisite die-casting and stamping processes make this product sturdy, scratch-resistant, impact-resistant, and not easy to corrode and deform, ensuring a long service life.

High-efficiency Pumping: A 7.5HP 4-stroke gasoline engine can provide strong power output with a flow rate of up to 1236.01ft³/h, which ensures efficient pumping.

Excellent Performance: 98.43ft head and 26.25ft suction height allow you to easily complete irrigation, drainage, and other tasks, greatly saving time and labor.

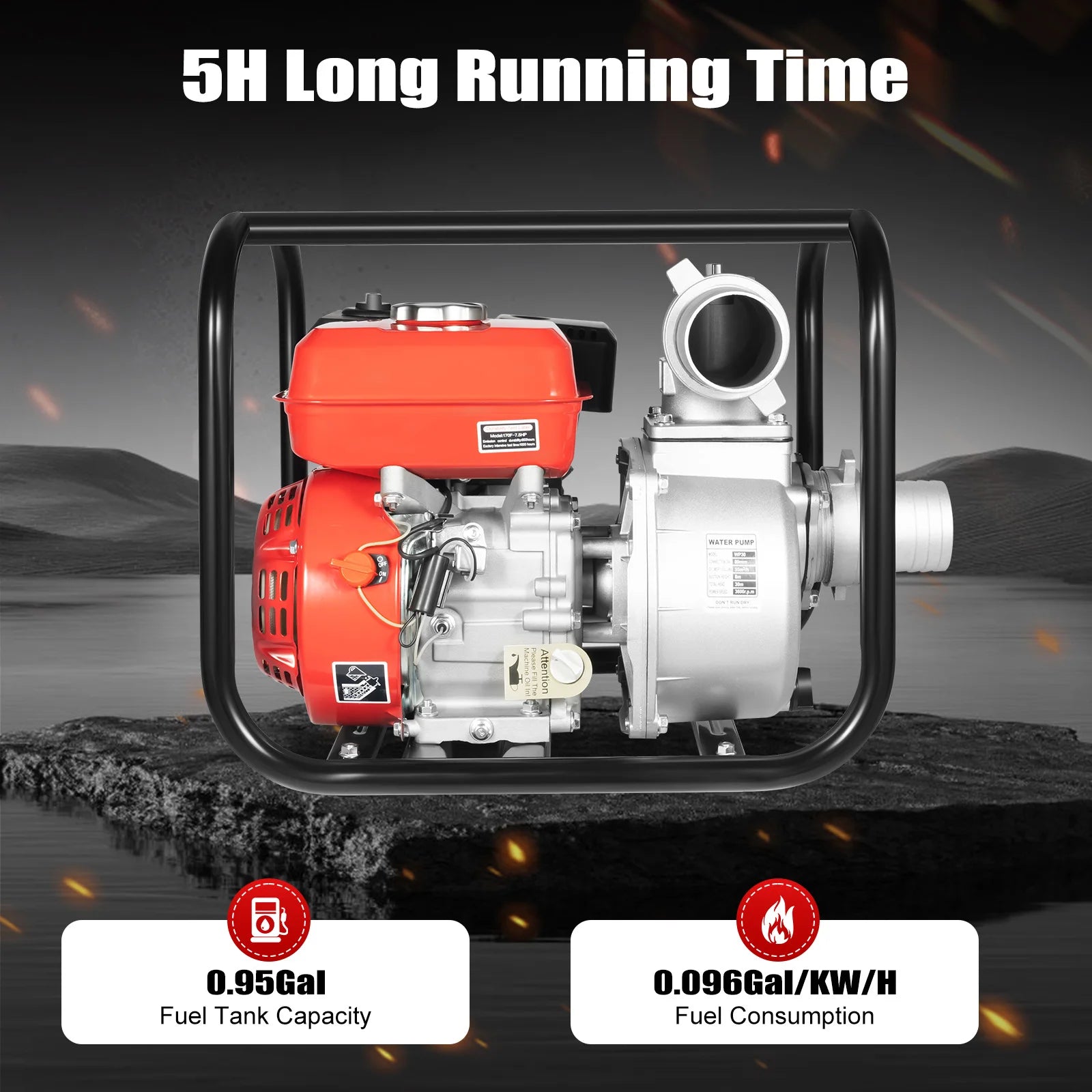

Long Running Time: The 0.95Gal fuel tank capacity eliminates the need for frequent refueling and can be used continuously for 5 hours, thereby improving work efficiency and saving time.

High Safety: The product's impeller ensures a good seal when handling particles up to 1/3 inch in diameter, reducing the risk of clogging and thus increasing safety in use.

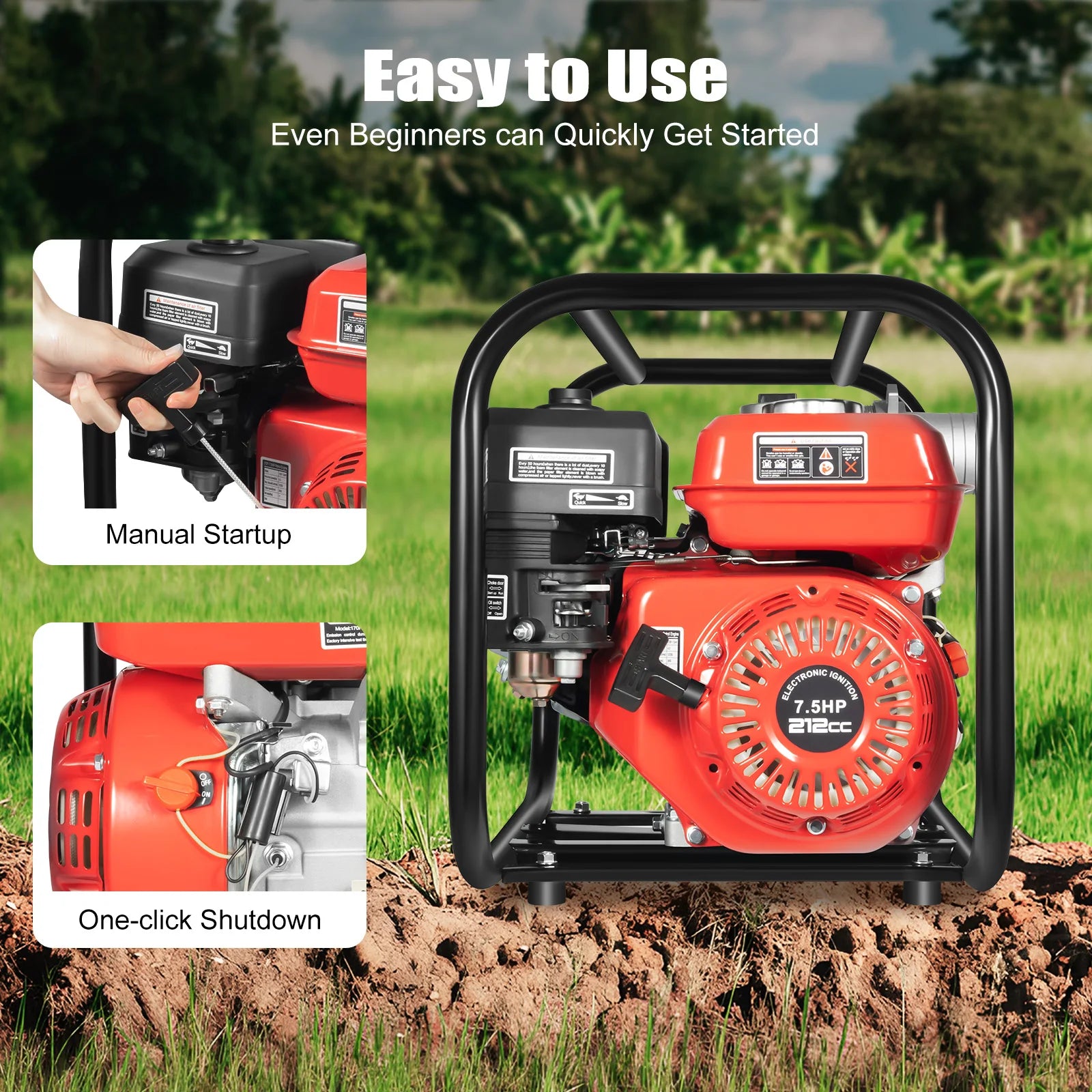

Easy to Use: You only need to pull the rope to start the engine and make it work, and the throttle switch can achieve one-click shutdown, even beginners can quickly get started.

Highly Stable: The anti-slip pads at the bottom of the product can reduce vibration, prevent product sliding, and ensure stable product operation.

Thoughtful Design: The sturdy carbon steel framekeeps the product out of direct contact with the ground, avoiding collisions and direct damage to the engine, while also providing you with handles to easily move it.

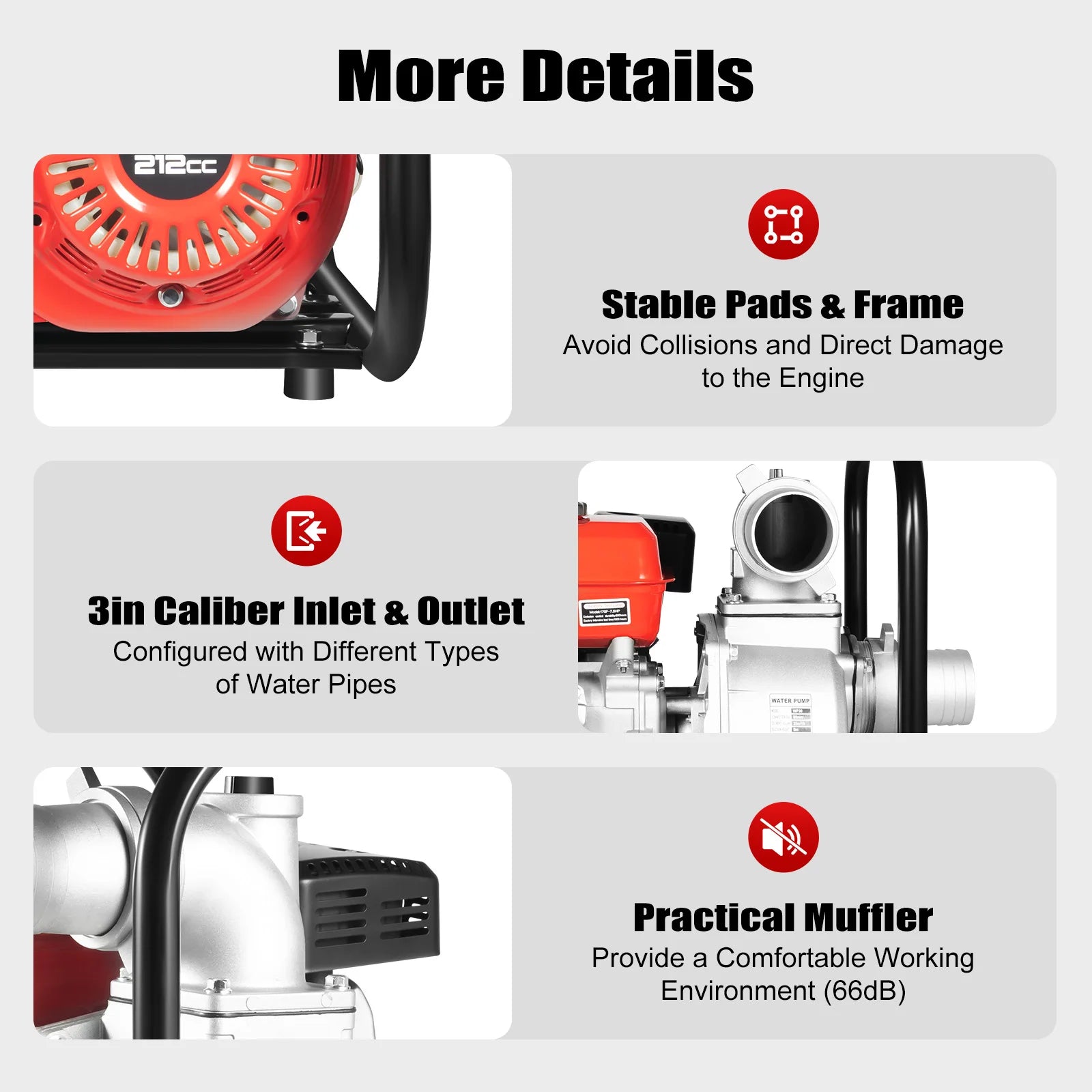

Details

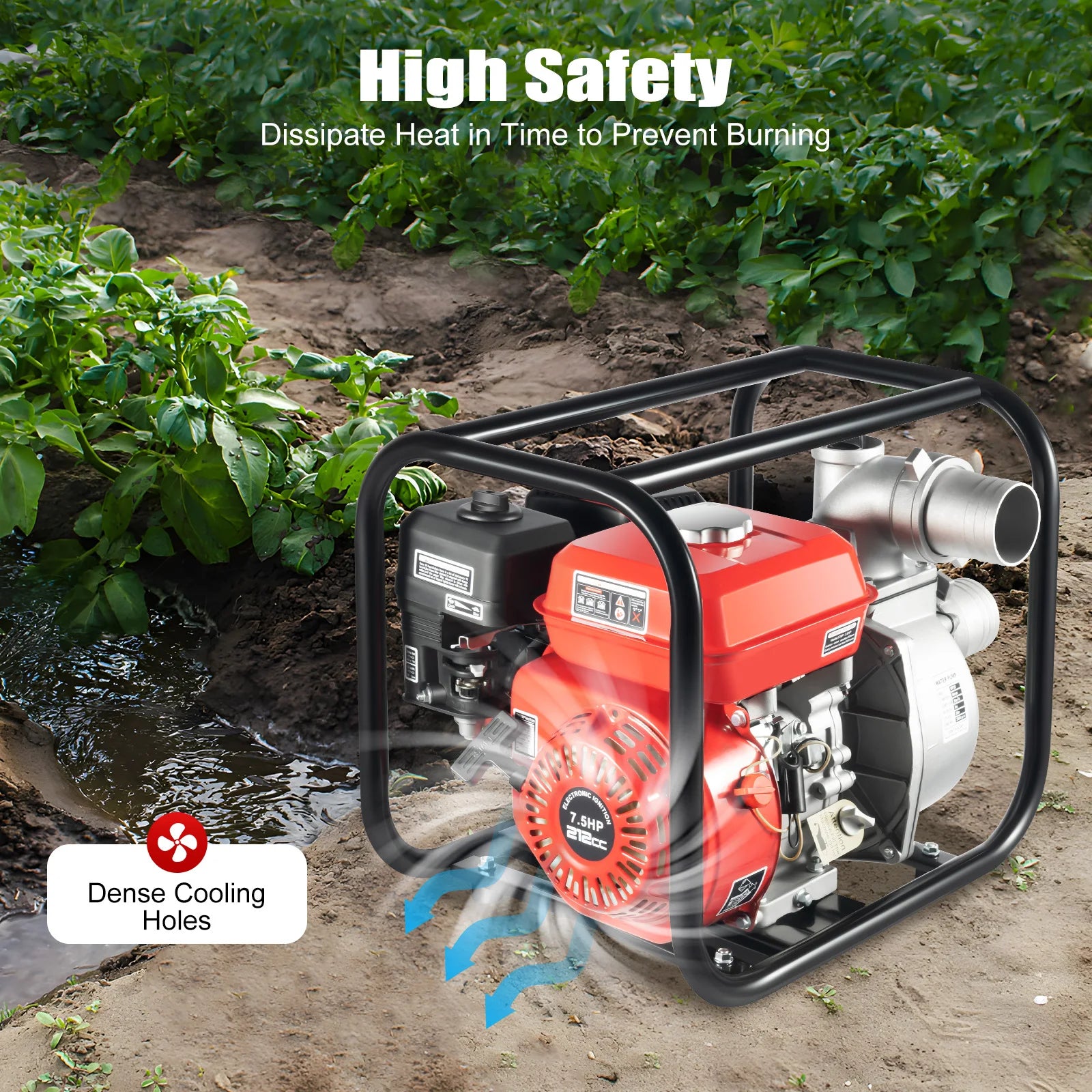

Heat Dissipation Holes: This design can help the product dissipate heat in time, prevent burning, improve safety during use, and extend the product's service life.

Filter: It can prevent debris from entering the pump body during operation, extending the service life of the product.

Large Caliber Inlet&Outlet: A 3-inch diameter inlet and outlet has strong versatility and can be configured with different types of water pipes.

Notes

1. Please read the operating manual completely before use. And pay particular attention to the safety instructions included.

2. The first use of the break-in period is 5-10 hours, and the engine oil needs to be changed, otherwise, impurities in the engine oil during the break-in period will jam the crankshaft.

3. Add gasoline of 90 # or above to the fuel tank of a four-stroke gasoline engine, and add engine oil to the casing. Please check the engine oil level before each use.

4. When working continuously, the temperature of the crankcase should not exceed 194℉. If it overheats, the machine should be stopped for 15-20 minutes before continuing to work. When adding gasoline, it must wait for the machine to cool down before proceeding.

5. It is prohibited to stop the machine at high speeds. The machine should be stopped when the throttle is lowered to the lowest! Please use clean and impurity-free engine oil.

6. The air filter cartridge should be regularly inspected and replaced. If it is dirty, clean it with soapy water and let it dry before use. The machine is not in use for a long time. Please do not directly turn off the gasoline engine switch. Instead, turn off the throttle switch to consume all the gasoline in the carburetor. If there is oil in the carburetor that is not consumed for a long time, it will cause oxidation of the carburetor. The spark plug generally does not need to be replaced. Once carbon deposits, they can be removed and scraped off with a knife.

7. Before using this gasoline engine water pump, please add water through the inlet to submerge the impeller and ensure that it is not used in water.

8. We recommend using unleadedgasoline for optimal performance.

Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
